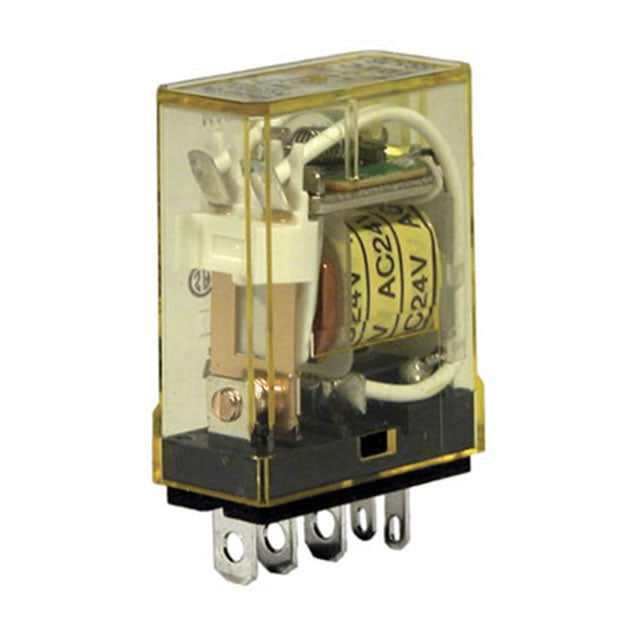

RH1B-UAC120V - POWER RELAY, SPDT, 120 VAC, 10 A, RH SERIES, SOCKET, NON LATCHING

Manufacturer: IDEC
Manufacturer Part No: RH1B-UAC120V
Product Range: RH Series

Product Overview
The RH1B-UAC120V is a 1-pole standard plug-in Power Midget Relay with blade terminals, 10A contact current rating, 16.5Ω coil resistance and 120VAC coil voltage. It uses silver cadmium oxide contacts to help reduce voltage arcing.
· Compact midget size saves space
· SPDT contact configuration
· 10A high switching capacity

Applications: Industrial

Product Information:
Contact Configuration: SPDT
Coil Voltage: 120VAC
Contact Current: 10A
Product Range: RH Series
Coil Type: Non Latching
Contact Voltage VAC: 110VAC
Relay Terminals: Quick Connect
Relay Type: Power - General Purpose
Contact Voltage VDC: 30VDC
Contact Material: Silver Cadmium Oxide
Coil Resistance: 16.5ohm
Approvals & Standards: CE, CSA, UL
