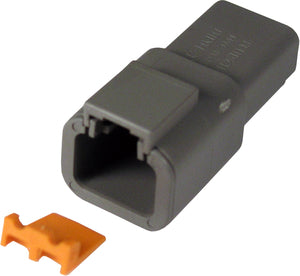

7980-34 - PICO 2-WAY DEUTSCH DTP SERIES RECEPTACLE & WEDGELOCK

PART NO. 7980-34

Pico
Prix normal: 99.05 CAD
Prix réduit: 99.05 CAD
Prix unitaire: par

Frais d'expédition calculés lors du passage à la caisse.

Détails des produits

Deutsch DTP series connectors provide solutions for larger Wire gauges. Building from the DT and DTM series connectors. The DTP connector line was designed for higher amperage power application requirements. Wedgelock included.

AMP	25A
CAVITIES	2
CONTACT SIZE	12
DEUTSCH NO.	DTP04-2P, WP-2P
GAUGE	14-10 AWG
MATERIAL	THERMOPLASTIC, SILICONE SEAL
SERIES	DEUTSCH DTP
TEMPERATURE RATING °C	-55 TO 125
TEMPERATURE RATING °F	-67 TO 257
USE WITH	OPEN BARREL MALE CONTACTS
