7012AH - TIME DELAY RELAY, 3 MIN, 30 MIN, 7000 SERIES, DPDT, 10 A

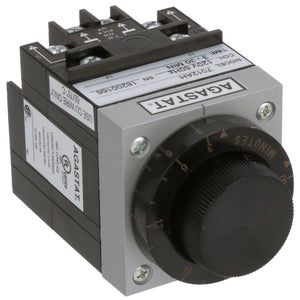

The 7012AH is an Electro-pneumatic Timing Relay with AC coil. This 2-1423157-0 panel mount electro-pneumatic timing relay has 2-form-C (DPDT) contacts, knob adjustable and quick connect terminals. It features on-delay (delay on pick-up) operation with 3 to 30 minutes timing range in linear increments. Oversize adjustment knobs, serrated with high-resolution markings visible from all angles makes the timer easy to set timers. Inherent transient immunity. Auxiliary timed and instantaneous switches can be added for greater switching flexibility. Modular assembly, timing head, coil assembly and switch block are all individual modules with switches field-replaceable.
· Horizontally mounted
· -30 to 75°C Operating temperature range

Applications: Industrial

Product Information
Time Min: 3min
Time Max: 30min
Product Range: 7000 Series
Contact Configuration: DPDT
Contact Current: 10A
Relay Mounting: Panel Mount
Contact Voltage VAC: 240VAC
Relay Terminals: Quick Connect
Nom Input Voltage: 120VAC
Timing Adjustment: Knob
Approvals & Standards: CSA, UL
