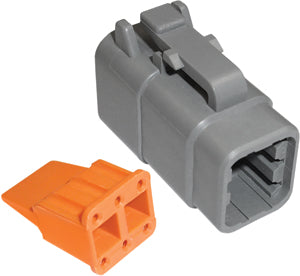

7916-34 - PICO 6-WAY DEUTSCH DTM SERIES PLUG & WEDGELOCK

7916-34 - PICO 6-WAY DEUTSCH DTM SERIES PLUG & WEDGELOCK

PART NO. 7916-34
Vendor
Pico
Regular price
66.70 CAD
Sale price
66.70 CAD
Unit price
per
Shipping calculated at checkout.

Deutsch DTM series connectors offer the same versatility as the DT series, but for applications where a smaller Wire gauge is necessary. Building on the strengths of the DT series the DTM connector line was developed to fill the gap for lower amperage multi-pin connectors. With smaller housings than the DT, or DTP series.

AMP 7.5A
CAVITIES 6
CONTACT SIZE 20
DEUTSCH NO. DTM06-6S, WM-6S
GAUGE 24-16 AWG
MATERIAL THERMOPLASTIC, SILICONE
ELASTOMER SEAL
SERIES DEUTSCH DTM
TEMPERATURE RATING °C -55 TO 125
TEMPERATURE RATING °F -67 TO 257
USE WITH OPEN/SOLID BARREL FEMALE
CONTACTS
