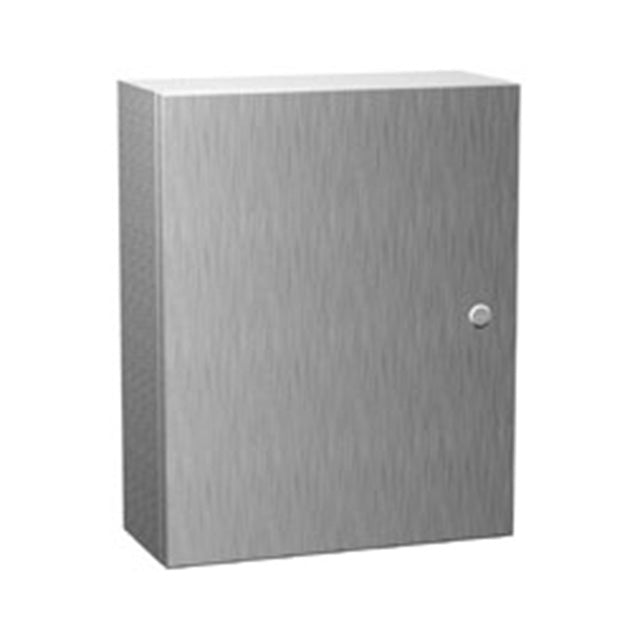

EN4SD16208GY - METAL ENCLOSURE, ECLIPSE, SINGLE DOOR, ELECTRICAL / INDUSTRIAL, STEEL, 406 MM, 508 MM, 203 MM, IP66

Product Overview
The EN4SD16208GY is a mild steel wall-mount Enclosure designed to enclose electrical and/or electronic equipment and protect against harsh environments for wall-mount applications. Impressive styling features like hidden hinges, attractive latching systems make the Eclipse a suitable addition to any high-tech equipment installation. The door stiffeners are provided where required for increased strength and rigidity - designed to also permit additional mounting options. Quarter turn latch and multi-point handle (key lockable) are zinc die-cast with black epoxy finish. The cover and enclosure are phosphatized and finished with a recoatable powder inside and out with of ANSI 61 smooth grey.
· NEMA-3R, 4, 12 Protection rating
· Formed 14 or 16 gauge steel
· Smooth, continuously welded seams ground smooth
· Formed lip on enclosure to exclude flowing liquids and contaminants
· Door latches feature the added safety of quarter turn slot requiring use of tool for opening
· Doors may be easily removed for modifications and are interchangeable
· Seamless poured-in place gasket
· Collar studs provided for mounting inner panel
· Bonding stud provided on door and grounding stud installed in enclosure
· Hinges are constructed from 304 stainless steel
· Hinge pins are stainless steel
· Door alignment guide provided on 36" wide enclosures
Applications
Industrial
Product Information
Enclosure Type: Electrical / Industrial
Enclosure Material: Steel
External Height - Metric: 406mm
External Width - Metric: 508mm
External Depth - Metric: 203mm
IP Rating: IP66
Body Color: Grey
NEMA Rating: NEMA 3R, 4, 12
External Height - Imperial: 16"
External Width - Imperial: 20"
External Depth - Imperial: 8"
Product Range: EN4SD Series
