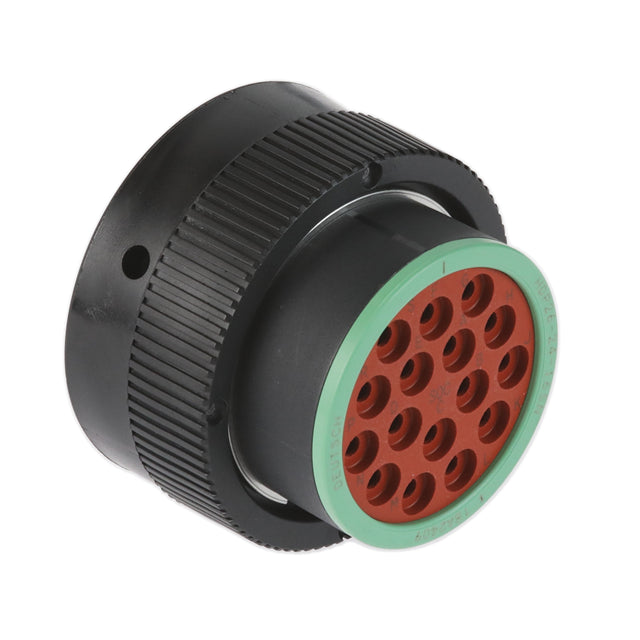

HDP26-24-16SN - AUTOMOTIVE CONNECTORS PLUG ASM

Mouser #:
571-HDP26-24-16SN
Mfr. #:
HDP26-24-16SN
Mfr.:
TE Connectivity / DEUTSCH
Manufacturer:
TE Connectivity

Product Category:
Automotive Connectors

RoHS:
Details

Product:
Connectors

Accessory Type:
-

Number of Positions:
16 Position

Gender:
Plug (Male)

Mounting Style:
Cable Mount / Free Hanging

Termination Style:
Crimp

Wire Gauge Max:
10 AWG

Wire Gauge Min:
14 AWG

Series:
HDP20

Application:
Wire to Wire

Attachment Hole Diameter:
2.5 mm

Brand:
TE Connectivity / DEUTSCH

Color:
Black

Contact Gender:
Without Socket Contacts

Current Rating:
25 A

Flammability Rating:
UL 94 V-1

Height:
49.53 mm

Housing Material:
Polyamide (PA)

Ingress Protection:
IP67

Length:
38.63 mm

Locking Mechanism:
Integrated in Housing

Material:
Plastic

Mating Gender:
Receptacle

Mating Part Number:
HDP24-24-16

Maximum Operating Temperature:
+ 125 C

Minimum Operating Temperature:
- 55 C

Mounting Angle:
Straight

Product Type:
Automotive Connectors

Factory Pack Quantity:
40

Subcategory:
Automotive Connectors

Tradename:
HD

Voltage Rating:
250 V

Width:
49.53 mm

Wire Gauge Range:
10 AWG to 14 AWG

Unit Weight:
54 g
